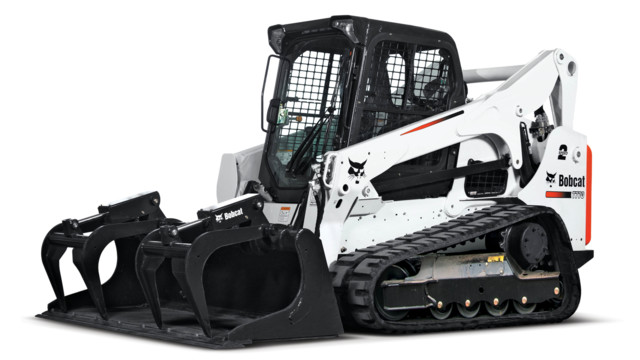

Bobcat T770

Available For Rent
Available For Purchase


With 11 ft. of vertical lift, the Bobcat® T770 compact track loader is primed for loading trucks, grinders and hoppers as well as many other jobs. The vertical lift path allows you to easily place cargo and tackle demanding tasks. The T770 is a Tier 4 model.



Specifications
Engine Cooling Liquid
Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Horsepower 92 hp
Rated Operating Capacity (SAE) 3,475 lbs
Operating Capacity (50% of Tip) 4,960 lbs
Tipping Load 9,929 lbs
Operating Weight 10,465 lbs
Travel Speed 6.6 mph
Travel Speed (2-speed option) 10.7 mph
Ground Pressure (Rubber) 4.2 psi
Fuel Tank 43.9 US gal
System Relief @ Quick Couplers 3,500 psi
Auxiliary Std Flow 23 GPM
Auxiliary High Flow 36.6 GPM
Length 141.6 in
Length without Attachment 114.3 in
Length with Standard Bucket 141.6 in
Width 78 in
Width (with bucket) 80 in
Height 81.3 in
Height with Operator Cab 81.3 in
Height to Bucket Hinge Pin 132 in
Reach @ Maximum Height 33.6 in
Turning Radius 88 in
Length of track on ground 63.7 in
Track Width 17.7 in
