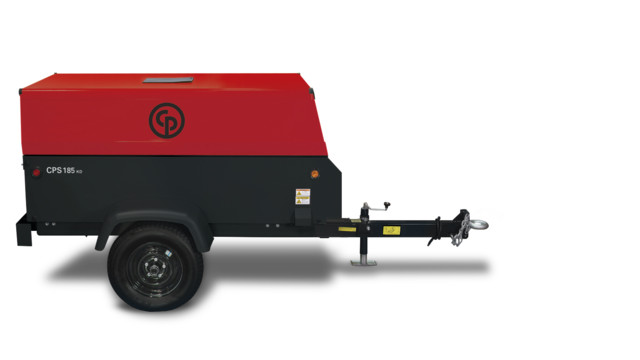

Chicago Pneumatic CPS 185 KD T4F

Available For Rent
Available For Purchase


Chicago Pneumatic's CPS 185 KD T4F portable diesel compressor is built to deliver reliable performance and flexibility for a wide range of general construction applications. It’s quiet and easy to use, thanks to a proven 4-cylinder, naturally aspirated Kubota engine, a noise-reducing enclosure and straightforward controls.

Product files and documents


CPS 185 KD T4F PDF file, 343.69 KB


 Specifications
 Actual Free Air Delivery  185 cfm
 Normal Effective Working Pressure  100 psi
 Maximum Unloading Working Pressure  125 psi
 Working Pressure Range  58-125 psi
 Discharge Outlet Quantity  2 x 3/4"
 Engine Model  Kubota V2403
 Number of Cylinders  4
 US EPA Emissions  Tier 4 Final
 Cooling System  Water (PAR Cool)
 Engine Power  49 hp
 Displacement  147 in3
 Rated Speed (high)  2,700 rpm
 Rated Speed (low)  1,600 rpm
 Fuel Consumption  2.3 gal/hr
 Fuel Tank Capacity  20 gal
 Sound Pressure Level  76 dBa
 Overall Length  131 in
 Overall Width  60 in
 Overall Height  55.25 in
 Weight Wet  2,400 lb
