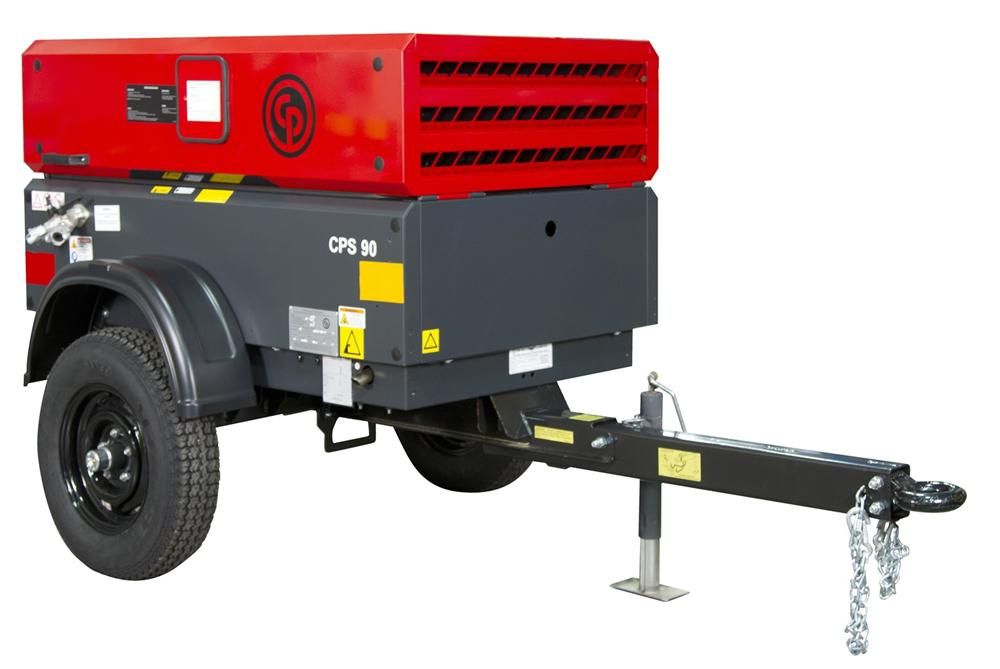

Chicago Pneumatic CPS 90 KD

Available For Rent
Available For Purchase


The Chicago Pneumatic CPS 90 portable compressors provide you with compressed air between 88 cfm and 100 cfm. Powered by Kubota engines, these portable compressors are typically used to drive various types of pneumatic tools.

Product files and documents


CPS 90 KD PDF file, 683.3 KB


 Specifications
 Flow rate according to standard ISO 1217
 at nominal speed and pressure
 2.5 m3/min
 Adjustable pressure range  4-7 bar
 Rated operating pressure  7.0 bar
 Air intake cocks  2x G3/4
 Allowed noise level according to Lwa (EC)  98 / 100 db(A)
 Length with raised towbar  2729 mm
 Length with extended towbar  2953 mm
 Width  1310 mm
 Height  1205 mm
 Fuel tank capacity  32 l
 Weight including fuel and oil  580 kg
 Overall operating weight  679 kg
 Kubota, water-cooled  Type: D1105
 Power at nominal speed  19.4 kW (hp)
 Nominal speed  3000/2400 rpm
 Oil capacity for engine  5.1 l
 Liquid coolant  4.5 l
 Voltage  12 V
 Capacity  45 Ah
 Oil capacity for compressor  5.5 l
 Suspension  Rubber
 Maximum speed  140-20 km/h
 Tyres  155R13 79T
 Tyre pressure  3.0/3.2 bar
 Track  1116 mm
 Ambient temperatures  -10/+45 °C
 Full load 100 %  4.74 kg/h
 No load running  2.04 kg/h
