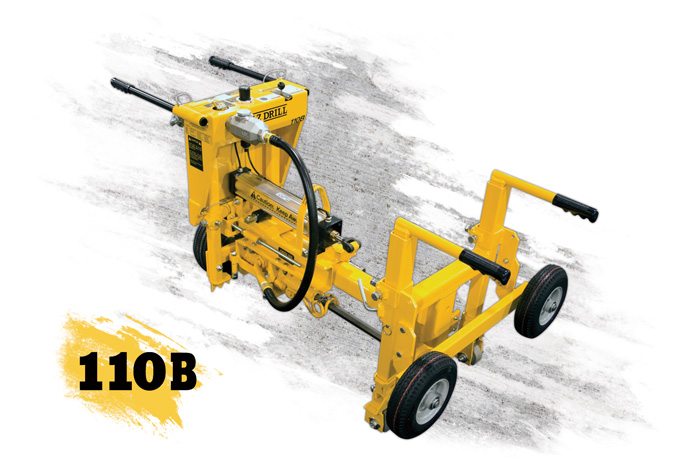

E-Z Drill 110B On-Grade

Available For Rent
Available For Purchase


Achieve greater efficiency with the 110B single-gang, on-grade drill that’s equipped with dual-purpose guide wheels to quickly transition from riding along the face of the slab to moving around the jobsite. The drill operates on the subgrade and fits in a 3-foot patch. A minimum of 50 cfm is required to run the totally pneumatic system, which can drill holes as deep as 12 inches in diameters of 5/8 of an inch to 2 inches. Users can install the optional hole spacing guide, which clearly indicates where to place the 170-pound drill, for even greater accuracy and efficiency when repositioning.

Product files and documents


110B Specs PDF file, 1.45 MB
110B Manual PDF file, 265.64 KB


Horizontal Position

Lower Length (A) 41 3/8 in (105.1 cm)
Lower Length w/ Back Wheel Removed 34 3/4 in (88.3 cm)
Width (B) 12 in (30.5 cm)
Height (C) 29 in (73.7 cm)
Weight 170 lbs (77.2 kg)
Drill Distance From Corner 6 in (15.2 cm)
Drill Distance From Ground 3 in (7.6 cm)
Drill Depth (std.) 12 in (30.5 cm)
Drill Bit Diameter 5/8 in to 2 in (15.9 mm to 50.8 mm)
Drill Motor (pneumatic) CP 22
Drill Motor Weight 28 lbs (12.7 kg)
Chuck Size (std.) 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
Air Consumption (minimum) 50 cfm (1.4 m3/min)
Operating Pressure 90 psi (6.2 bar)
Impact (ft. lbs./blow) 24 fpb (32.6 J)
Hammer Speed 2600 bpm
Speed 210 rpm



Vertical Position

Lower Length (A) N/A
Lower Length w/ Back Wheel Removed N/A
Width (B) 12 in (30.5 cm)
Height (C) N/A
Weight 170 lbs (77.2 kg)
Drill Distance From Corner N/A
Drill Distance From Ground Up to 12 in (7.6 cm)
Drill Depth (std.) 12 in (30.5 cm)
Drill Bit Diameter 5/8 in to 2 in (15.9 mm to 50.8 mm)
Drill Motor (pneumatic) CP 22
Drill Motor Weight 28 lbs (12.7 kg)
Chuck Size (std.) 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
Air Consumption (minimum) 50 cfm (1.4 m3/min)
Operating Pressure 90 psi (6.2 bar)
Impact (ft. lbs./blow) 24 fpb (32.6 J)
Hammer Speed 2600 bpm
Speed 210 rpm
