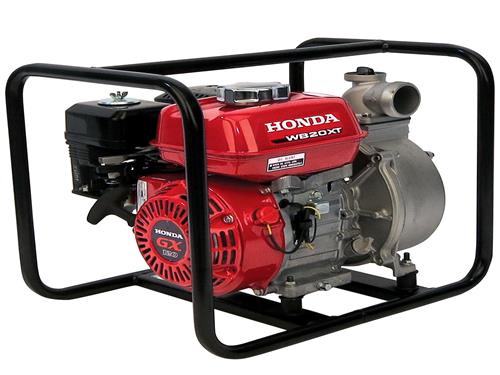

Honda WB20XK2

Available For Rent
Available For Purchase


FEATURES

  • Heavy-duty 2" construction trash pump
  • Easy starting Honda OHV commercial engine
  • 185 gal./min capacity
  • Solid handling capability up to 13/16"
  • Cast iron volute and impeller
  • Quick clean out port

Product files and documents


WB20XK2 PDF file, 5.68 MB


Specifications
Engine GX120
Displacement 118 cc
Bore and stroke 2.4 x 1.7 in
Compression Ratio 8.5:1
Oil Alert Standard
Pump type Centrifugal, Self-priming
Volute Rigid Mounted Cast Iron
Impeller 4 Vane Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 110 sec @ 16.4 ft
Drive system Direct
Discharge capacity 164 gal/min
Suction port diameter 2" NPT
Discharge port diameter 2" NPT
Total head lift 105 ft
Suction head lift 25 ft
Maximum pressure 45 psi
Dimensions (L x W x H) 19.3 x 14.4 x 16.5 in
Dry weight 44 lbs
Fuel Capacity 0.53 US gal
Run Time @ Max Discharge 1.7 hr
Strainer Part # 78325-YG3-000
Residential Warranty 3 Years
Commercial Warranty 3 Years
