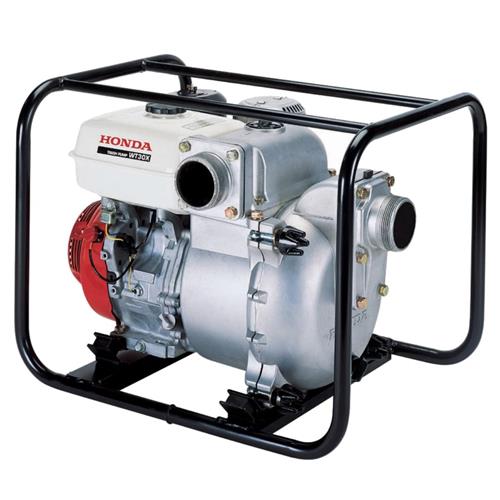

Honda WT30XK3A

Available For Rent
Available For Purchase


FEATURES

  • Heavy-duty 3" construction trash pump
  • Easy starting Honda OHV commercial engine
  • 317 gal./min capacity
  • Solid handling capability up to 1 1/16"
  • Cast iron volute and impeller
  • Quick clean out port

Product files and documents


WT30XK3A PDF file, 3.92 MB


Specifications
Engine GX270
Displacement 270 cc
Bore and stroke 3.0 x 2.3 in
Compression Ratio 8.5:1
Oil Alert Standard
Pump type Trash Centrifugal Self-priming
Volute Rigid Mounted Cast Iron with Stainless Wear Plate
Impeller Conical Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 90 sec @ 16.4 ft
Drive system Direct
Discharge capacity 317 gal/min
Suction port diameter 3"
Discharge port diameter 3"
Total head lift 82 ft
Suction head lift 26 ft
Maximum pressure 36 psi
Solids handling 1 1/16 in
Dimensions (L x W x H) 26.0 x 19.5 x 20.3 in
Dry weight 134 lbs
Fuel Capacity 1.4 US gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YG1-003
Residential Warranty 3 Years
Commercial Warranty 3 Years
