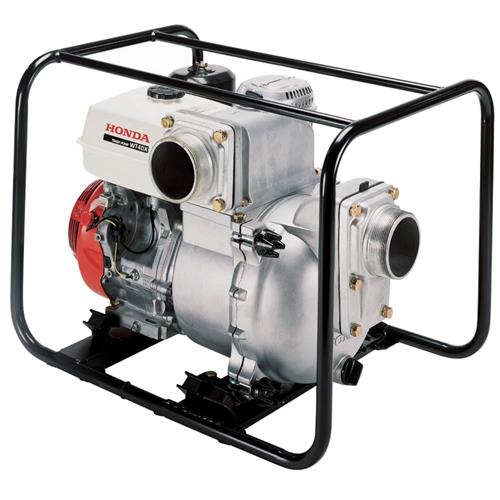

Honda WT40XK2A

Available For Rent
Available For Purchase


FEATURES

  • Heavy-duty 4" construction trash pump
  • Easy starting Honda OHV commercial engine
  • 423 gal./min capacity
  • Solid handling capability up to 1 1/16"
  • Cast iron volute and impeller
  • Quick clean out port

Product files and documents


WT40XK2A PDF file, 3.92 MB


Specifications
Engine GX390
Displacement 389 cc
Bore and stroke 3.5 x 2.5 in
Compression Ratio 8.2:1
Oil Alert Standard
Pump type Trash Centrifugal Self-priming
Volute Rigid Mounted Cast Iron with Stainless Wear Plate
Impeller Conical Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 150 sec @16.4 ft
Drive system Direct
Discharge capacity 423 gal/min
Suction port diameter 4"
Discharge port diameter 4"
Total head lift 82 ft
Suction head lift 26 ft
Maximum pressure 36 psi
Solids handling 1 1/16 in
Dimensions (L x W x H) 28.9 x 21.1 x 22.2 in
Dry weight 172 lbs
Fuel Capacity 1.6 US gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YG2-003
Residential Warranty 3 Years
Commercial Warranty 3 Years
