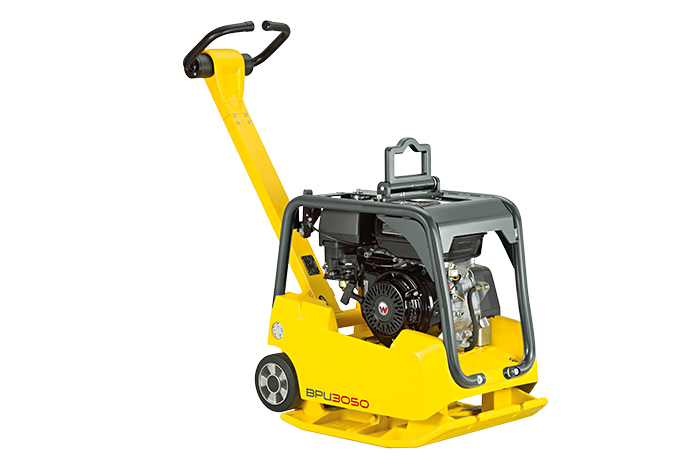

Wacker BPU3050A

Available For Rent
Available For Purchase


These reversible plates are ideal for the compaction of interlocking paving stones, trenches, landscape and municipal applications. They come with a unique, integrated wheel set that provides easy one-person movement around the job or shop.
  • Single lever direction control provides for easy forward and reverse operation.
  • Adjustable guide handle can be locked into a vertical position for easy transportation and storage.
  • Easy access throttle control simplifies operation and reduces operator fatigue.
  • Heavy duty frame features an integral central lifting point for easy on/off loading and placement of plate into trenches.
  • Specially designed shockmount system offers virtually vibration-free guide handle for operator comfort and increased productivity.

Product files and documents


BPU3050A PDF file, 239 KB


Specifications
Operating weight 366 lbs
Centrifugal force 6,744 lbsf
Base plate thickness 0.4 in
Operating width 19.7 in
Height(without guide handle) 27.5 in
Operating height - Adjustable Guide Handle - Down 31.5 in
Operating height - Adjustable Guide Handle - Up 45 in
Frequency 90 Hz
Advance travel (depending on soil & environmental factors) 68.9 ft/min
Surface capacity (depending on soil & environmental factors) 6,781 ft²/h
Gradeability (depending on soil & environmental factors) 30 %
Engine / Motor type Air-cooled, single-cylinder, 4-cycle engine
Engine / Motor manufacturer Honda
Engine / Motor GX270
Displacement 16.47 in³
Operating performance (DIN ISO 3046) 9 hp
at rpm 3,600rpm
Fuel consumption 3 US gal/h
Tank capacity - Fuel 5.3 US qt
Power transmission From drive motor via centrifugal clutch and V-belt direct to exciter.
Fuel type Gasoline
