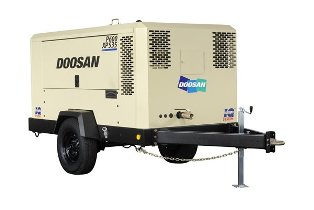

Doosan P600/XP535WCU- T4i

Available For Rent
Available For Purchase


The two-in-one P600/XP535WCU-T4i dual pressure portable air compressor delivers airflow ranging from 400 to 450 cfm and pressures ranging from 100 to 125 psi. With no increase in dimensional size from previous compressor models offered by Doosan Infracore Portable Power, users in a variety of markets will appreciate the small footprint. The compact size and a less running gear option allow the unit to be mounted on truck beds for increased flexibility. They are ideal for use in a variety of applications, including general construction, abrasive blasting and pneumatic tool applications.

Product files and documents


P600-XP535WCU-T4i PDF file, 508.43 KB


 Specifications
Compressor Low Pressure High Pressure
Free-Air Delivery 600 cfm 535 cfm
Rated Operating Pressure 100 psig 125 psig
Pressure Range 80 - 125 psig 80 - 150 psig
Air Discharge Outlet Size 2.0 in 2.0 in
Air Discharge Outlet Quantity 1 in 1 in
Fuel Tank Capacity 75 gal 75 gal
Make/Model Cummins/QSB6.7 Cummins/QSB6.7
Emissions Tier Level Tier 4 Interim (T4i) Tier 4 Interim (T4i)
Number of Cylinders 6 6
Displacement 409 cu in 409 cu in
Rated Speed 2200 rpm 1950 rpm
Idle Speed 1500 rpm 1500 rpm
Bhp @ Rated Speed 173 bhp 173 bhp
Electrical 24V 24V
Hours of Operation @ Full Load 9,0 8,7
Length 170 in 170 in
Width 78.1 in 78.1 in
Height 76 in 76 in
Track Width 66.2 in 66.2 in
Tire Size 16 in 16 in
Shipping Weight (w/o Fuel) 5178 lbs (2349 kg) 5178 lbs (2349 kg)
Working Weight (with Fuel) 5670 lbs (2572 kg) 5670 lbs (2572 kg)
