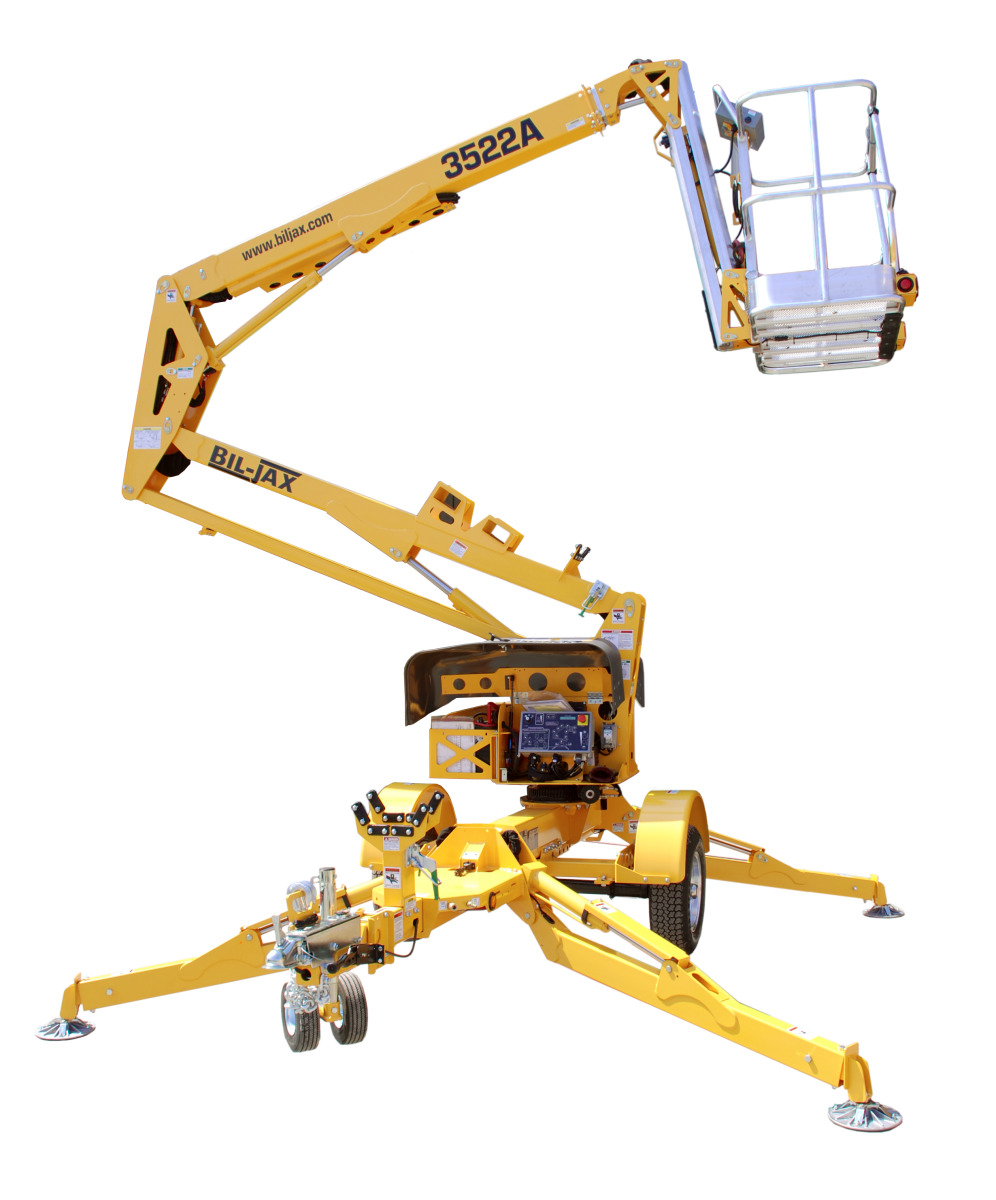

Haulotte 3522 A

Available For Rent

Available For Purchase

Access on the move
Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
Superior combination of industry leading capacity and outreach
Can be towed by a standard half-ton pickup truck - No commercial driver’s license needed
Exceptional productivity
Air / water lines and 110V GFI protected power to the platform

Request a Quote


3522A PDF file, 2.35 MB

Specifications
Working height	41 ft 9 in
Platform height	35 ft 9 in
Horizontal outreach (from centerline)	22 ft 6 in
Horizontal outreach (from edge of footpad)	17 ft 5 in
Up and over height	19 ft
Lift capacity	500 lbs
Length - stowed	16 ft 3 in
Width stowed	5 ft 6 in
Height stowed	6 ft 5 in
Platform size	4 ft x 2 ft 6 in
Outrigger footprint	11 ft 1 in x 9 ft 11 in
Turntable rotation	355° non-continuous
Jib - length	4 ft 3 in
Jib - Vertical Motion	150° (+70 / -80)
Tow speed rating	65 mph
Gradeability	12.5 %
Leveling capability	12.5 °
Tire size	ST 225/75 D15
Power source	4 x 6 V 245 amp-hr
Tongue weight (no options)	245 lbs
Weight (no options)	3400 lbs
