Husqvarna 4000

Available For Rent
Available For Purchase

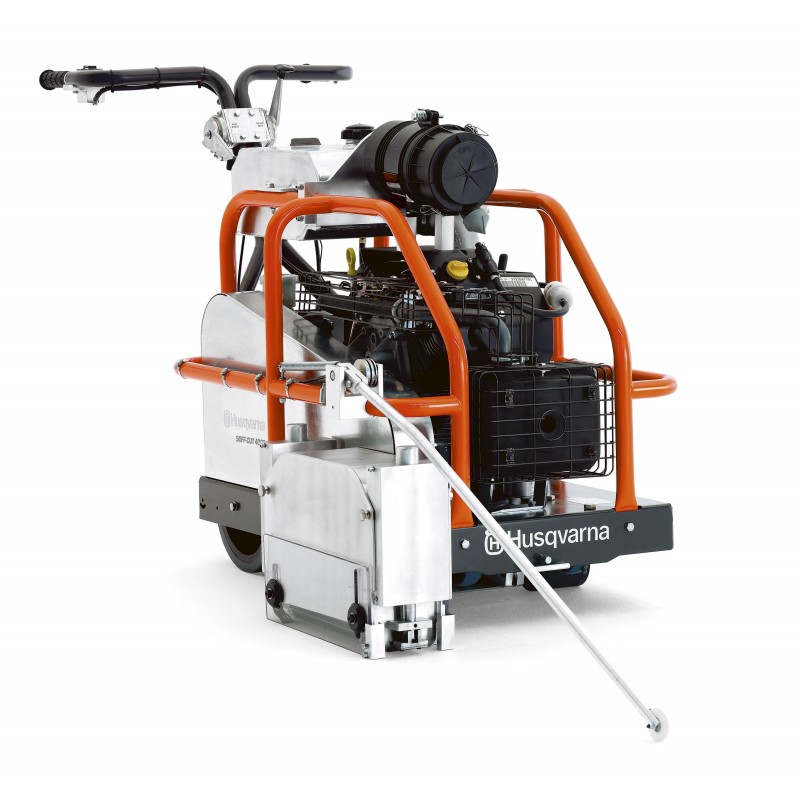

The Husqvarna Soff-Cut 4000 self-propelled gasoline saw is designed for heavy-duty commercial, industrial and paving applications. Features include a 20 hp twin-cylinder engine with overhead valves, heavy-duty air cleaner, electric start, full pressure lubrication, hydraulic valve lifters and a mechanical fuel pump. Three blade widths can be used, allowing different joint widths and crack control simultaneously.


Product files and documents

4000 PDF file, 3.88 MB

Motor manufacturer Kohler
Motor spec Kohler gasoline
Max output 15.3 kW / 20.5 hp
Cylinders 2
Number of strokes 4-stroke engine
Cylinder displacement 41.1 cu. Inch
Cylinder bore 3.1 inch
Cylinder stroke 2.6 inch
Fuel tank volume 4.34 US gal
Starter Electric
Engine cooling Air
Number of belts 3
Displacement, l 0.674 lit
Oil capacity, l 1.9 lit
Diamond blade, max 13.5"
Max cutting depth 2.75 inch
Blade depth control Electric
Blade control Electric Remote
Blade shaft diameter 1.5 inch
Blade flange 5.875"
Blade shaft RPM 3,500 rpm
Axle front 1 inch
Rear axle diameter 1 inch
Handle bars Fixed
Primary wheel size Outside diameter: 4" Wheel width: 4" Inner Bore: 0"
Secondary wheel size Outside diameter: 10" Wheel width: 3.625" Inner Bore: 0"
Weight 420 lbs
Weight including packaging 518 lbs
Product size, L x W x H 34 x 29 x 34 inch
