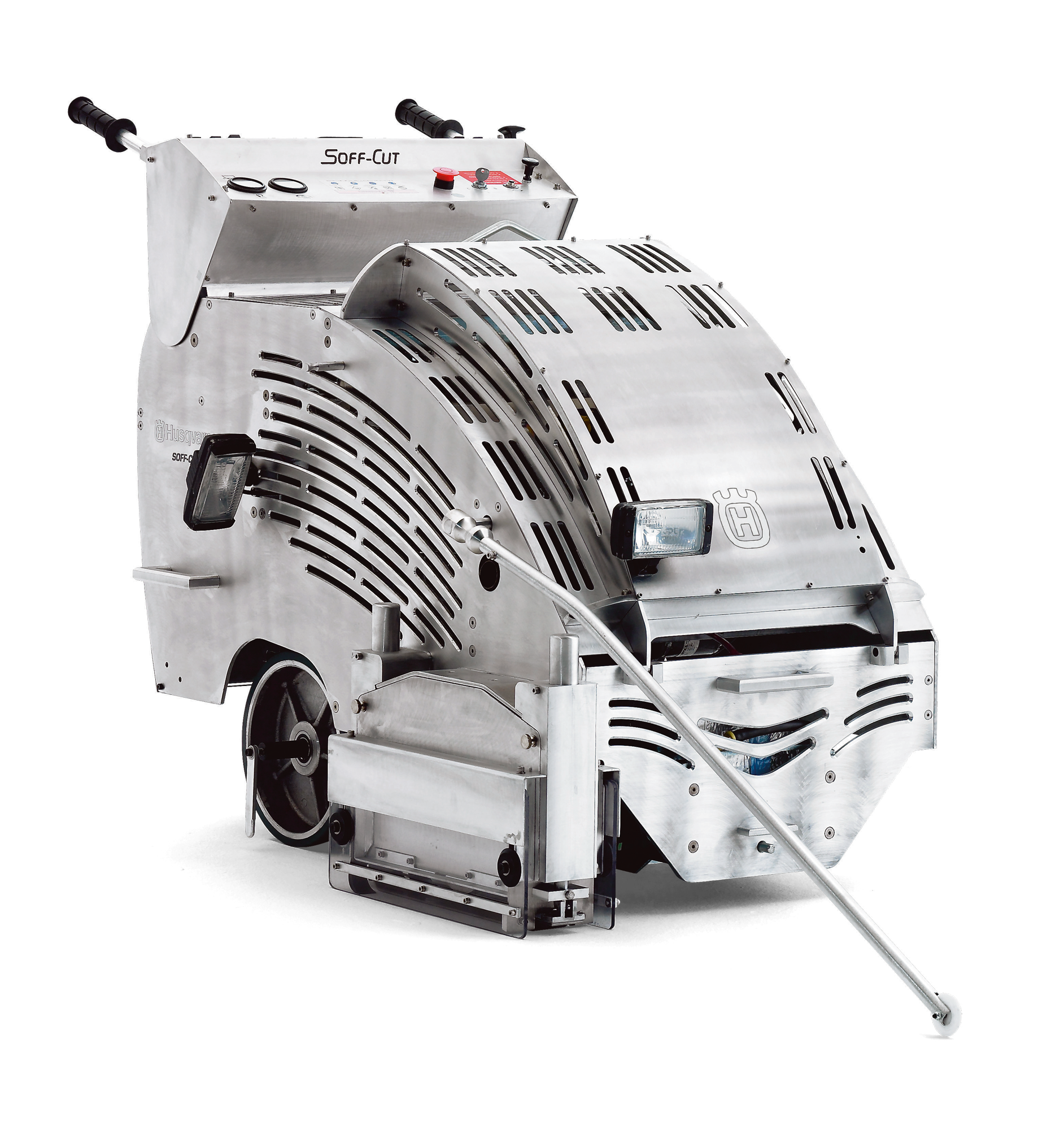

Husqvarna 4200

Available For Rent
Available For Purchase

The Husqvarna 4200 self-propelled dry-cutting gasoline saw has a low-noise enclosed design and is ideal for heavy-duty commercial, industrial and paving applications. The 4200 is designed for peak performance. Features include a 23 hp twin-cylinder gasoline engine, three-stage cyclonic air cleaner, oil cooler, full-pressure oil lubrication, hydraulic valve lifters, mechanical fuel pump and oil alert light. Multiple blade widths can be used, allowing different joint widths and crack control simultaneously.

Product files and documents

4200 PDF file, 4.2 MB

Motor manufacturer Kohler
Motor spec Kohler gasoline
Max output 17.2 kW / 23 hp
Cylinders 2
Number of strokes 4-stroke engine
Cylinder displacement 41.1 cu. Inch
Cylinder bore 3.2 inch
Cylinder stroke 2.6 inch
Fuel tank volume 3.16 US gal
Starter Electric
Engine cooling Air
Number of belts 3
Displacement, l 674 lit
Oil capacity, l 1.9 lit
Output RPM 3,500 rpm
Diamond blade, max 14"
Max cutting depth 3 inch
Blade depth control Electric
Blade control Electric Remote
Blade shaft diameter 1.5 inch
Blade flange 5.875"
Blade shaft RPM 3,500 rpm
Axle front 1 inch
Rear axle diameter 1 inch
Handle bars Multi position
Primary wheel size Outside diameter: 4" Wheel width: 4" Inner Bore: 0"
Secondary wheel size Outside diameter: 11" Wheel width: 4" Inner Bore: 0"
Weight 488 lbs
Weight including packaging 568 lbs
Product size, L x W x H 89 x 30 x 40.25 inch
