Husqvarna 5000

Available For Rent
Available For Purchase

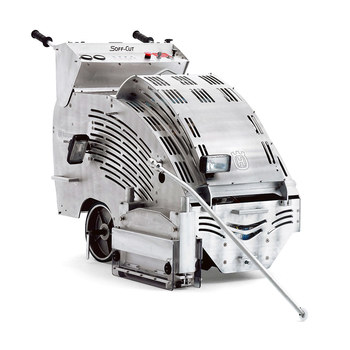

The Husqvarna Soff-Cut 5000 Paver self-propelled gas saw is designed for highway and paving applications. Features include a 27 hp engine with overhead valves, heavy-duty air cleaner, electric start, full pressure lubrication, hydraulic valve lifters, and a mechanical fuel pump. Several blade widths can be used, allowing different joint widths and crack control simultaneously. The unique saw design allows for a 4" depth of cut.

Product files and documents


5000 PDF file, 4.24 MB


Specifications
Motor manufacturer Kohler
Motor spec Kohler gasoline
Max output 20.13 kW / 27 hp
Cylinders 2
Number of strokes 4-stroke engine
Cylinder displacement 44 cu. Inch
Cylinder bore 3.3 inch
Cylinder stroke 2.6 inch
Fuel tank volume 3.16 US gal
Starter Electric
Engine cooling Air
Number of belts 4
Displacement, l 725 lit
Oil capacity, l 1.9 lit
Output RPM 2,900 rpm
Diamond blade, max 14"
Max cutting depth 4 inch
Blade depth control Electric
Blade control Electric Remote
Blade shaft diameter 1.5 inch
Blade flange 4.34"
Blade shaft RPM 2,900 rpm
Axle front 1 inch
Rear axle diameter 1 inch
Handle bars Multi position
Primary wheel size Outside diameter: 4" Wheel width: 4" Inner Bore: 0"
Secondary wheel size Outside diameter: 11" Wheel width: 4" Inner Bore: 0"
Weight 495 lbs
Weight including packaging 593 lbs
Product size, L x W x H 95 x 30.5 x 41 inch
Sound pressure 84 dB(A)
