E-Z Lift 68-18 12' Electric

Available For Rent
Available For Purchase

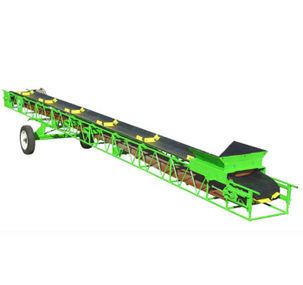

The E-Z LIFT Troughing-Slider Conveyor is a medium duty conveyor designed to move loose and packaged materials at inclines up to 30 degrees. The conveyor’s unique combination slider/roller bed makes it E-Z LIFTS’s most versitile belt conveyor. Reversible, this conveyor can quickly move materials in and out!

Features include:

  • Heavy duty 2 ply rubber covered belt with 2” high cleats on 48” centers
  • Combination slider/roller bed
  • 7/8” O.D. high strength steel tubing for 12' & 16' models, 1-1/4" O.D. on 21' through 36' models
  • 15" frame height
  • Approximate 140 FPM belt speed
  • Conveyor belt take-up adjustments
  • Self cleaning drive and idler belt pulleys
  • Drive mounted at side of discharge end
  • For electric motor – direct drive speed reducer
  • For gas engine – internal V-belt and roller chain reduction and safety guards
  • Fork pockets
  • Operating, maintenance, and safety instructions

Product files and documents


TS 050 PDF file, 2.12 MB


Specifications
 Belt                    18" wide
 Length  12'
 Weight   265 lbs
